TABLET COATING MACHINES- CONVENTIONAL Are Used In A Variety Of Industries Including Pharmaceutical, Confectionary, Food And Others.Coating Pan Made From 10 Swg, Ss304 Or Ss316 Or Ss316 L Material And Polished To The Mirror Finished From Inside & Outside. Coating Pans Have Been Designed After A Careful Study Of The Needs Of Expert Coaters Such As Rotational Speed, Angle Of Inclination Of Pan, Inside Finishing Of The Pan, Total Volume And Temperature Of The Hot Air.
Description
The Standard Pan Is Elliptical In Shape, Mounted At 30° Angle.
Rpm Of The Pan Is Variable. With Help Of The Variable Speed Pulley.( A.C. Drive Provided Optionally )
Inbuilt Hot Air Blower System As A Standard Supply Up To 48'' Size (Excluding 60'' & 72'' Size) & High Capacity Mobile Hot Air Blower System Also Provided (as A Optional) With Temperature Controller To Control The Temperature Of Air At Selected Temperatures Between 30°C To 75°C Is Provided With Air Delivery Pipe To Deliver Required Quantity Of Air In The Pan.
Special Features
Temperature Controller Provided For Temp. Controlling.
Anti Vibrating Unit Provided For Proper Leveling, Hence No Requirement Of Foundation.
Compact Hot Air Blower With Inlet Air Damping Arrangement.
Easy Mounting Arrangement For Change Over From Coating Pan To Polishing Pan.

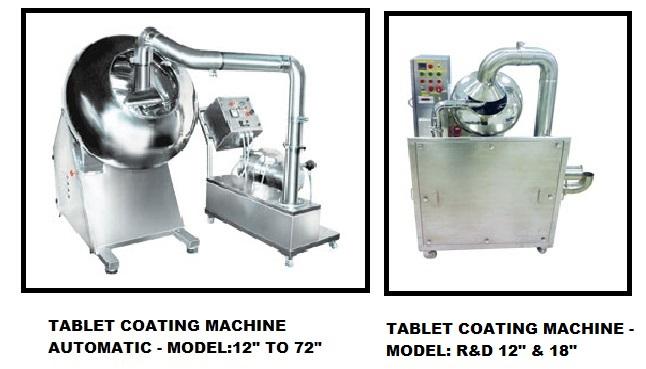

Conventional Coating Machine :12”, 18”, 24'', 30'', 36'', 42'', 48'', 60'' & 72'' Model And
Model: R&D 12" / 18"
