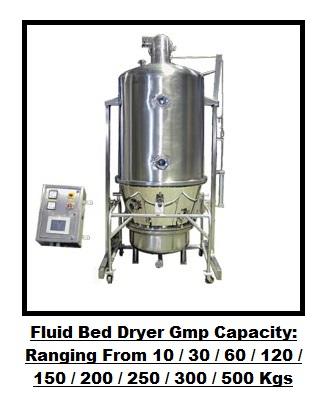

"FLUID BED DRYER" Is Providing Compactness And Conceptional Principle Of Air Fluidization For Drying Granules, Crystalline, Coarse Or Similar Materials In Pharmaceuticals, Fine Chemicals, Dyes, Food & Allied Industries.The Basic Concept Of The Fluid Bed System Begins With A Simple Drying Unit To Which Several Different Optional Packages May Be Added For Conversion To A Granulation Or Coater.The Fluid Bed Dryer Is Not Suitable For Drying Liquids Or Pasty Materials.

Operation:

Fluid Bed Dryer Is Designed To Introduce The Hot Air Stream At The Base Of The Product Container Which Is Filled With The Material. This Hot Air Stream Expands The Bed Of Material At Certain Velocity & Creating Turbulance In The Product. The Phenomenon Is Known As Fluidisation And Offer Conditions Which Are Almost Ideal For Drying. Heat Transfer Is Extremely High And Uniform. The Product Is Dried Fast Without Appreciable Loss Of Heat. Filter Bags Prevent Particles Escaping From The Dryer.

Special Features:
Uniformity In Drying And Reduction In Drying Time.
Atmospheric Inlet Air Is Filtered By Means Of Non Woolen Filter Cloth. Pre /MICRO V & Hepa Filters Can Be Provided On Demand On Extra Cost To Prevent Any Fine Dust To Pass Through The Products.
Digital Temperature Indicator Cum Controller For Inlet Air & Digital Temperature Indicator For Outlet Air, Are Provided For Electrically Heated Model.
Digital Temperature Indicator Are Provided For Inlet & Outlet Air, In Steam / Thermic Fluid Heated Model. (Temperature Controlling Valves Will Be In Customer Scope Of Supply)
Manually Operated Air Dampers Provided To Control The Inlet And Outlet Air Flow.
An Explosion Safety Flap Of Adequate Capacity At The Rear Of Dryer And An Earthing Point To Prevent Static Charge In The Machine.
Contact Parts Retarding Chamber & Product Container Are Made Out Of Ss304 & Polished To The Mirror Finished And Other Parts Are Made Out Of Ss 304 And Polished To The Matt Finished In Gmp Model & Made Out Of M.S. & Painted In Standard Model With Non-Flameproof Blower Motor, (Flameproof Motor Provided On Demand) Suitable To Dry Wet Material.
