Product Number: G4T15.2S48B80TSGS
Category: Goodman 15.2 SEER2 Gas System
Tags: 15.2 SEER2, 48000 BTUh, Gas System, Goodman 4 TonProduct Description
Square Installments

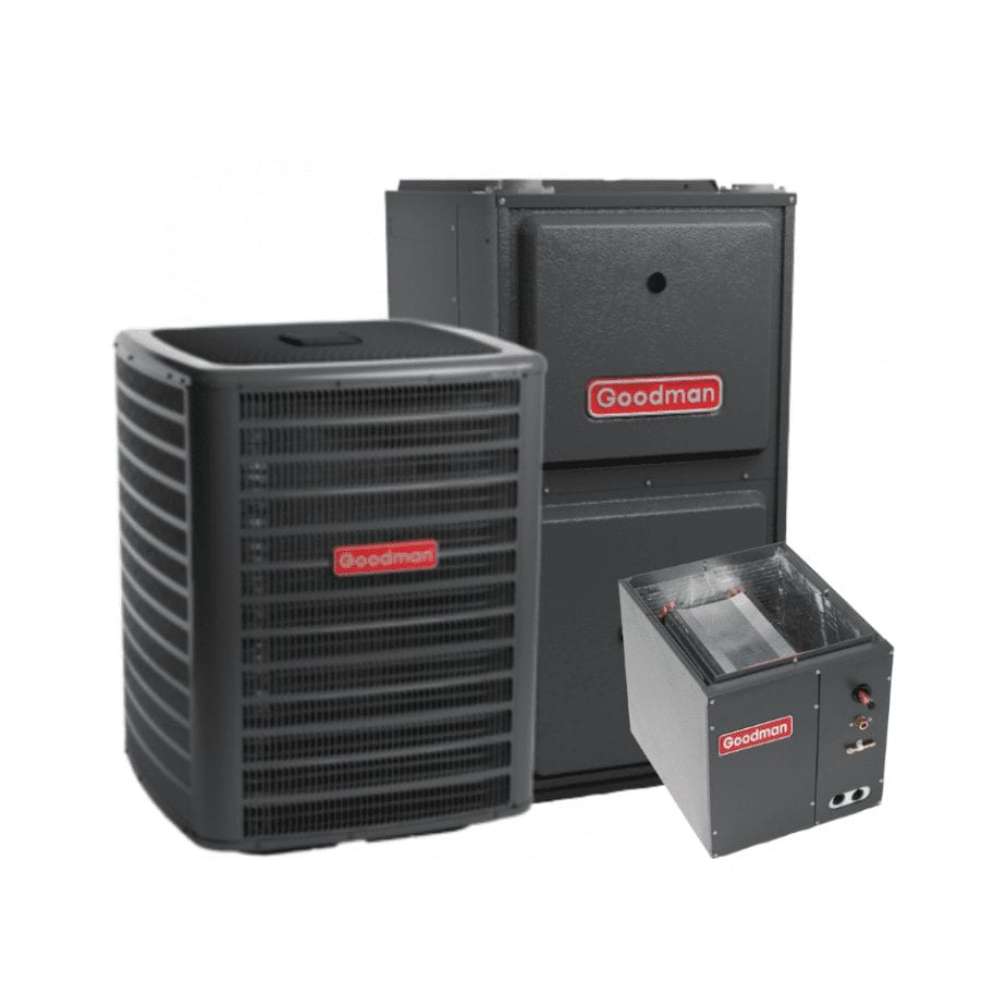

Overview of Goodman 4 Ton 15.2 SEER2 48000 BTUh Gas System |

GSXH5 Series 48000 BTUh Air Conditioner Condenser | GM9C80 80000 BTUh Gas Furnace | CAPF 60000 BTUh Cased Coil | R-410a Refrigerant
To fulfill your home’s heating and cooling needs, the AHRI-certified Goodman 4 Ton 15.2 SEER2 48000-80000 BTUh 80% AFUE Two-Stage Gas System is a perfect choice. It consists of: (1) Goodman 4 Ton 15.2 SEER2 48000 BTUh AC Condenser GSXH504810, (2) Goodman 80000 BTUh 80% AFUE Two-Stage Gas Furnace GM9C800804CN & (3) Goodman 4-5 Ton 60000 BTUh Upflow/Downflow Cased Coil CAPF4961C6.



Specialty of Goodman 4 Ton 15.2 SEER2 48000-80000 BTUh 80% AFUE Two-Stage Gas System
1. Consistent performance for many years
To ensure consistent performance through many years of operation, Goodman has left no room for errors in each HVAC unit in this system and has thoroughly tested every component.

2. Easy Cleaning
Equipped with a factory-installed in-line filter drier, keeping your air ducts free from mold, and dirt is easier than ever before. The GSX16 effectively gets rid of dirt and dust before it ever gets the chance to enter your air ducts.

3. High durability
With industry-grade materials and construction ranging from galvanized steel cabinets to aluminum tubing, each component is crafted for durability and long-term performance.

4. AHRI Certified
The importance of a matched HVAC system cannot be downplayed, and so each component has been picked to specifically achieve the 16 SEER rating and AHRI certification expected of an efficient system.

5. Simple Troubleshooting
Make the life of you and your HVAC repair specialist easier with the on-boarding diagnostics of the GMES80 which monitors for faulty and inefficient operation. With this, you enable quick troubleshooting.

6. State-of-the-art technology
Goodman has instilled the GSX16, GMES80, and CAPF cased coil with state-of-the-art technologies, improvements, and functions to ensure that your HVAC system is the best in the market.



Goodman 4 Ton 16 SEER Gas System
Brand Goodman
Nominal Capacity 4 Ton
Stages Single
SEER Rating 16 SEER
EER Rating 13 EER
Heating BTU 100000 BTU
AC Condenser unit Goodman GSX16S481
Gas Furnace unit Goodman GMES801005CN
Cased Coil unit Goodman CAPF4961C6
AHRI 203381823




I. Goodman 4 Ton 16 SEER GSX16 45500 BTU Air Conditioner Condenser GSX16S481
Goodman always innovates when it comes to their Air Conditioner condensers and the Goodman 4 Ton 16 SEER GSX16 45500 BTU Air Conditioner Condenser GSX16S481 does not disappoint in this regard. With excellent durability and efficiency measures, the GSX16 is an excellent air conditioner for any HVAC system out there.

Features of Goodman 4 Ton 16 SEER GSX16 45500 BTU Air Conditioner Condenser GSX16S481
The GSX16 comes with a highly efficient and quiet compressor.
It is equipped with a single-speed fan motor which reduces energy consumption and operates quietly.
Capable of efficient heat-transfer through the R-410 refrigerant.
Prevents molds from developing in your air ducts with the factory-installed in-line filter drier.
Durability is key with the GSX16 as it comes with a heavy-gauge galvanized steel enclosure cabinet.
Features an improved design over the standard copper tubing and aluminum fins.
It uses less refrigerant and offers higher efficiency.
Performs for many years while keeping your energy bills low.
Specifications of Goodman 4 Ton 16 SEER GSX16 45500 BTU Air Conditioner Condenser GSX16S481
AC Condenser Specifications
Nominal Capacity 4 Ton
Cooling Capacity 45500 BTU
SEER Rating 16
EER Rating 13
Horsepower 1/6
AC Condenser Electrical Data
Voltage 208/230 Volts
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 23.5 Amp
Breaker Circuit Prot. Rtg. (Maximum) 40 Amp
AC Condenser Dimensions
Line Size – IN. O.D. Gas 7/8 Inches
Line Size – IN. O.D. Liquid 3/8 Inches
Condenser Height 36.25 Inches
Condenser Width 35.5 Inches
Condenser Depth 35.5 Inches
AC Condenser Weight
Product Weight 206 Pound
Shipping Weight 228 Pound
