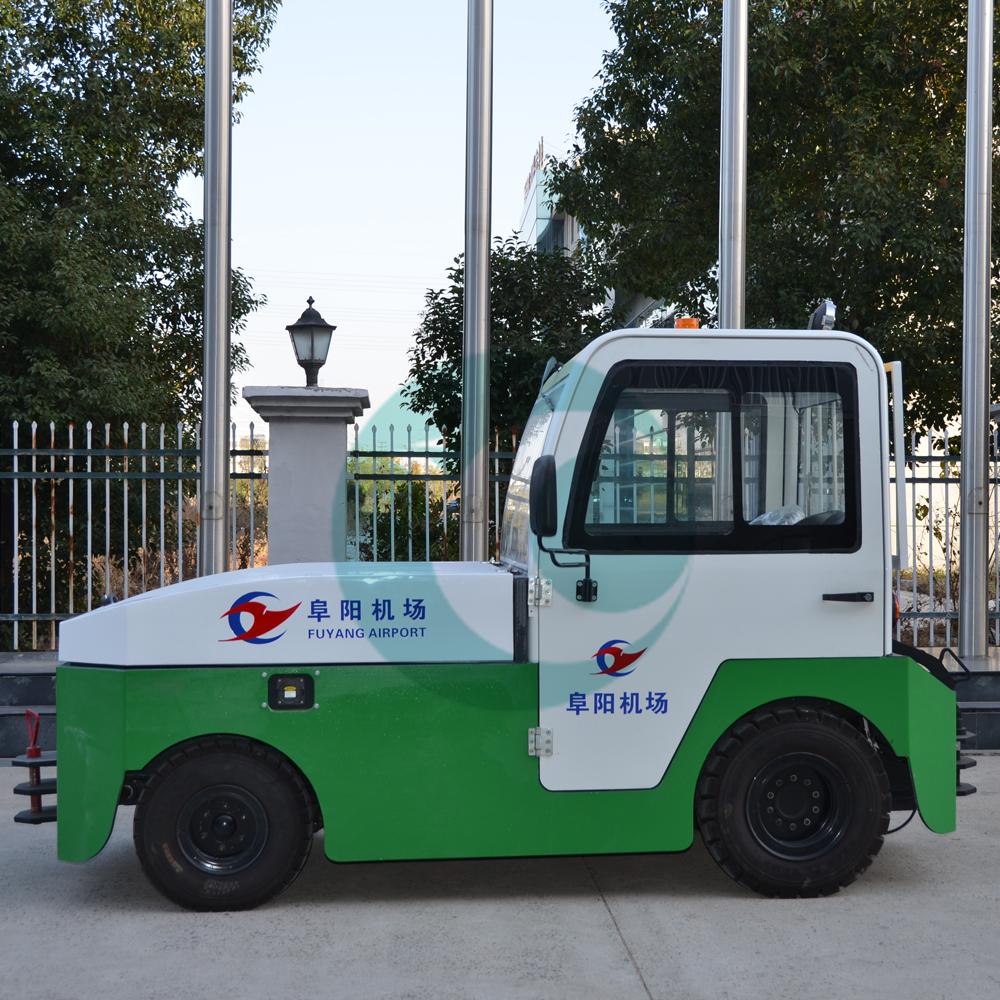

Aircraft Tow Tractor technical parameters

Total length (without/with traction plug) mm: 3125/3615

Total width mm: 1400

Total height mm: 1970

Front suspension mm: 550

Rear suspension mm: 625

Traction peg height mm: 304.8

Minimum ground clearance mm: 148

Approach Angle (°) : 20.2

Departure Angle (°) : 20.5

Minimum turning diameter of front outer wheel mm: 7300

Axis pitch mm: 1950

Maintenance weight kg: 4350

Front axle bearing mass kg: 1900

Rear axle bearing mass kg: 2450

Maximum travel speed (no load/load) km/h: 25/11

Climbing grade (no load) % : 20

Maximum hook tractive force kN: 30

Rated hook tractive force kN: 9

Rated traction weight kg: 30000
