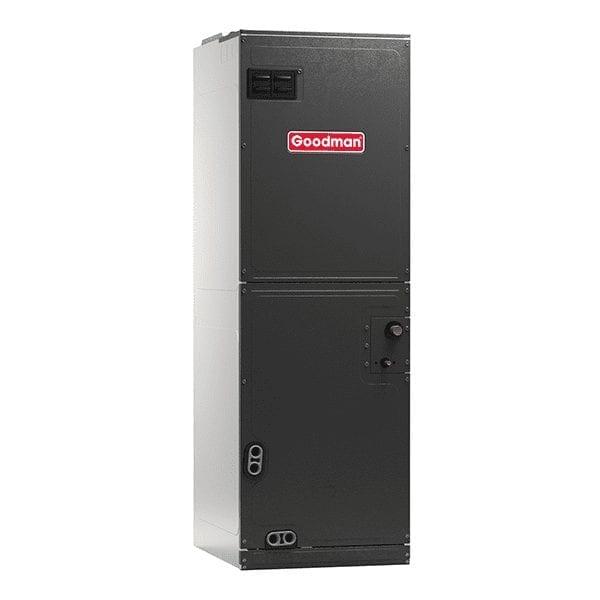

For maximum efficiency and satisfactory comfort, the Goodman 3 Ton 36000 BTUh Multi-Speed Air Handler AMST36BU1400 has been tested and tried. This reliable and durable air handler includes a number of useful features.

Features of Goodman 3 Ton 36000 BTUh Multi-Speed Air Handler AMST36BU1400
All-aluminum made evaporator coil that serves as the system’s main base
Corrosion and Rust resistance
Field-Installed electric heat kit
Modular Configurations with Upflow or Counterflow & Horizontal position with the MBR blower
Field-installed heat strips for enhanced performance
Specifications of Goodman 3 Ton 36000 BTUh Multi-Speed Air Handler AMST36BU1400
Air Handler Specifications
Product Line ARUF
Refrigerant R-410a
Motor Type PSC
Blower Motor Multi-Speed
Configuration Multi-Position
Install Area Indoor
Capacity 3 Ton
Cooling 36000 BTU
Airflow (Max) 1625 CFM
Airflow (Min) 1120 CFM
Air Handler Electrical Data
Voltage 208/230 V
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 4 Amps
Recommended Breaker Size 15 Amps
Air Handler Dimensions
Suction Conn. Size 7/8 Inches
Liquid Conn. Size 3/8 Inches
Air Handler Height 53.4375 Inches
Air Handler Width 21 Inches
Air Handler Depth 21 Inches
Air Handler Weight
Air Handler Weight 130 Pounds
Shipping Weight 1145 Pounds
