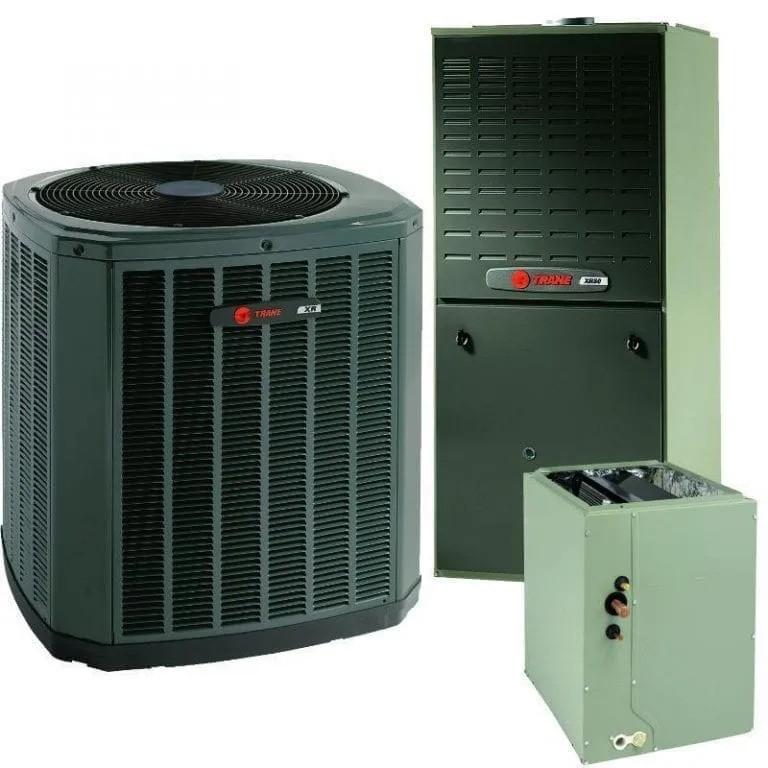

Overview of Trane 5 Ton 18 SEER 47000 BTU Variable Speed 95% Communicating Gas System | XV18 Series 60000 BTU Air Conditioner Condenser | XC95m 120000 BTU Gas Furnace | 4TXC 60000 BTU Cased Coil | R-410a Refrigerant | FREE INSTALLATION
Trane 5 Ton 18 SEER 47000 BTU Split System Variable Speed 95% Communicating System is one of the best bundle Heating and Cooling systems for home and office space uses. This variable speed 95% communicating system consists of three major Heating and Air Conditioning components – (1) Trane 5 Ton 18 SEER XV18 60000 BTU Variable Speed Air Conditioner Condenser 4TTV8060A1000B, (2) Trane XC95m 120000 BTU 97% AFUE Upflow/Horizontal Modulating Stage Gas Furnace TUHMD120ACV5VB and (3) Trane 5 Ton 60000 BTU 4TXC Cased Coil 4TXCD010DS3HCA

Specialty of Trane 5 Ton 18 SEER 47000 BTU Variable Stage 95% Communicating System
1. Trane TrueComfort™
By running at the exact speed needed to keep your home comfortable, Trane’s TruComfort™ systems give you precise comfort. It allows your variable speed compressor, indoor fan, and outdoor fan to vary operating speed and BTU as the temperature outside changes, speeding up or slowing down gradually in as little as 1/10 of one percent increments to keep comfort within 1/2° of the thermostat setting.

2. ComfortLink II Communicating Capability
When matched with the communicating indoor units, the ComfortLink™ II Communicating Technology will be available to connect all of your HVAC components automatically and configures or calibrates for maximum efficiency and performance for years to come.

3. Quiet In Operation
The whole HVAC system works surprisingly silently and doesn’t create noise more than only 4dB. You won’t even notice if it’s operating or not.

4. Durable Built
This 3 Ton Communicating HVAC system was rigorously tested and tortured to ensure it holds itself even in the toughest situation.

5. Efficient in Performance
With 18 SEER rating, this variable speed air conditioning system is capable of automatically adjusting itself while ensuring consistent speed to avoid any temperature swings.

6. Fresh, Clean & Healthy Air
By adding Trane CleanEffects™ to your HVAC system, you can ensure a filtration system that doesn’t allow pollen, dust, and other unwanted particles inside your home, thus ensure healthy, fresh and clean airflow inside your home.

Trane 5 Ton 18 SEER V/S 95% Communicating System
Nominal Capacity 5 Ton
Stages 2
SEER Rating 17.25 SEER
EER Rating 12 EER
Capacity 47000 BTU
AC Condenser unit Trane 4TTV8060A1000B
Gas Furnace unit Trane TUHMD120ACV5VB
Cased Coil unit Trane 4TXCD010DS3HCA




I. Trane 5 Ton 18 SEER XV18 60000 BTU Variable Speed Air Conditioner Condenser 4TTV8060A1000B
Corrosion-Resistant Weatherguard Fasteners
Climatuff Scroll Compressor for day-long quiet operation & cost-efficiency
Premium Grey Finish
DuraTuff Non-Corrosive Base Pan
18 SEER rating ensuring cost-efficiency
Spine Fin Coil
Advanced CleanEffects™ air filtration system ensures healthy, fresh and clean
Made from premium materials for longevity
Quick-Sess Cabinet with Full Coil Protection
Full-Side Louvered Panels
Specifications of Trane 5 Ton 18 SEER XV18 60000 BTU Outdoor Variable Speed Air Conditioner Condenser 4TTV8060A1000B
AC Condenser Specifications
Nominal Capacity 5 Ton
Cooling Capacity 60000 BTU
Compressor CLIMATUFF®- SCROLL
Coil SPINE FIN™
AC Condenser Electrical Data
Voltage 208/230 Volts
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 27 Amp
Breaker Circuit Prot. Rtg. (Maximum) 40 Amp
AC Condenser Dimensions
Line Size – IN. O.D. Gas 7/8 Inch (es)
Line Size – IN. O.D. Liquid 3/8 Inch (es)
Condenser Height (Uncrated) 45 Inch (es)
Condenser Width (Uncrated) 37 Inch (es)
Condenser Depth (Uncrated) 34 Inch (es)
AC Condenser Weight
Shipping Weight 284 Pound (s)




II. Trane XC95m 5 Ton 120000 BTU 97% AFUE Upflow/Horizontal Modulating Stage Gas Furnace TUHMD120ACV5VB
Variable Speed blower motor of this unit offers ample airflow for heating and cooling and the fan blowing settings change according to the thermostat
Has a variable speed ECM blower motor with Comfort RTM
Multiport In-shot burners offer years of quiet & efficient service
The Comfortlink IITM Communicating furnace design of this unit offers simple plug-and-play while ensuring maximum engineering performance.
Cycle tested, Durable, Aluminized Steel Heat Exchanger offers efficient heat exchange & resistance against corrosion
The XC95m gas furnace has the special type 29-4C™ secondary stainless steel heat exchanger
Ensures less than 2% air leak
The efficiently designed operational program offers total control of the furnace gas valve, limit sensors, flame control, blowers and also includes self diagnostics to detect any fault.
The solid state devices of the integrated system control allow continuous monitoring for existence of flame.
Utilizes an Adaptive Heat Up Silicon Nitride Hot Surface Ignition system to eliminate the waste of a constant burning pilot.
Advanced CleanEffects™ air filtration system can be added for a healthier airflow
Heavy gauge steel cabinet with baked-on enamel finish ensures durability & beauty.
Low energy power vents blower
The gas furnace is ready to be connected to the 3 wire hook-up with the TCONT900 or the TZONE950 comfort control for communicating mode.
The modulating gas valves of this unit offers long heating cycles to ensure consistent indoor heating comfort.
