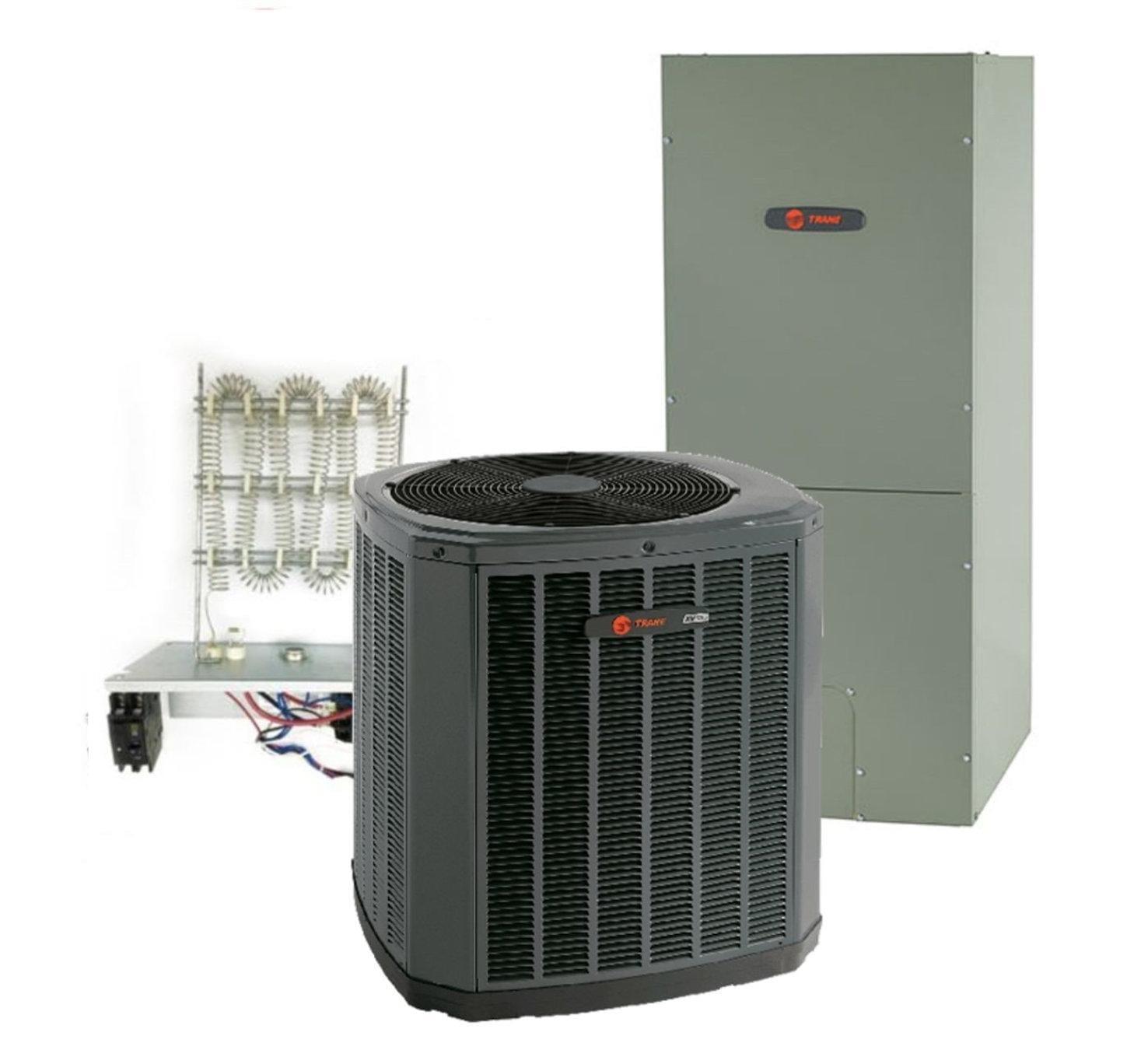

Overview of Trane 5 Ton 14 SEER 54500 BTU Electric HVAC System | XR14 Series 56000 BTU Air Conditioner Condenser | TEM4 60000 BTU Air Handler | 20 kW Electric Heater | R-410a Refrigerant | Includes Installation
Looking for a home HVAC system? Trane 5 Ton 14 SEER Electric HVAC System is an efficient home HVAC solution. This complete electric Heating and Air Conditioning system bundle is equipped with three major HVAC components –

(1) Trane 5 Ton 14.8 SEER2 XR14 60000 BTUh AC Condenser 4TTR4060N1000, (2) Trane 5 Ton 60000 BTUh M Series V/S Convertible Air Handler TEM4B0C60S51S & (3) Trane 15 kW (10.8–14.4 kW) 36900-49200 BTUh Single-Phase Electric Heater BAYHTR1517BRK w/ Breaker.

Trane 5 Ton 14 SEER Electric HVAC System
Nominal Capacity 5 Tons
SEER Rating 14 SEER
EER Rating 11.7 EER
Capacity 54500 BTU
Outdoor AC Condenser unit Trane 4TTR4060L1000A
Indoor Air Handler unit Trane TEM4A0C60S51SB
Electric Heater unit Trane BAYHTR1523BRKA




1. Trane 5 Ton 14 SEER XR14 56000 BTU Air Conditioner Condenser 4TTR4060L1000A
Trane XR14 Series 5 Ton 14 SEER 56000 BTU 4TTR4060L1000A air conditioner condenser unit is an efficient solution to your home air conditioning needs. This 5 Ton outdoor air conditioner includes the highly reliable and efficient ClimaTuff Scroll Compressor that works quietly, thanks to the Spine Fin Coil. The coil also helps increase the efficiency of the unit and makes it a perfect companion for your heating unit at home.

To fight against corrosion and rust, this XR14 5 Ton Air Conditioning unit has WeatherGuard fasteners & a DuraTuff base pan. To wrap it off, the 4TTR4060L1000A AC condenser unit has full-slide louvered panels that keep all the internal parts protected inside.

Features of Trane 5 Ton 14 SEER 56000 BTU XR14 AC Condenser 4TTR4060L1000A
1. Full-Side Louvered Panels

2. Advanced CleanEffects™ air filtration system can be added to this unit for ensuring healthier airflow

3. Made from premium materials for longevity

4. Corrosion-Resistant Weatherguard Fasteners

5. Spine Fin Coil

6. Climatuff Scroll Compressor for day-long quiet operation & cost-efficiency

7. Premium Grey Finish

8. DuraTuff Non-Corrosive Base Pan

9. Quick-Sess Cabinet with Full Coil Protection

Specifications of Trane 5 Ton 14 SEER XR14 Series 56000 BTU Outdoor Air Conditioner Condenser 4TTR4060L1000A
Condenser Specifications
Nominal Capacity 5 Tons
Cooling Capacity 56000 BTU
Compressor CLIMATUFF®- SCROLL
Stages Single
Fan HP 1/5
Fan Diameter 27.5 Inch
R-410a Refrigerant 7 Pound
Coil SPINE FIN™
Chassis Type Fixed
Condenser Electrical Data
Voltage 230/208 Volts
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 31 A
Breaker Circuit Prot. Rtg. (Maximum) 50 A
RL Amps 23.7 A
LR Amps 152.5 A
Outdoor Fan FL Amps 1.05 A
AC Condenser Dimensions
Line Size – IN. O.D. Gas 7/8 Inch
Line Size – IN. O.D. Liquid 3/8 Inch
Condenser Height (crated) 42.4 Inch
Condenser Width (crated) 35.1 Inch
Condenser Depth (crated) 38.7 Inch
AC Condenser Weight
Condenser Weight 211 Pound
Shipping Weight 246 Pound
